Work
Components, as machined.
A selection of parts photographed on our floor. Each caption names the operations visible on the part; customer names and drawings stay confidential.
Milling · Boring
Stacked split housing
Multi-piece housing with a common machined bore and flat mating faces.
Profiling · Turning
Sprocket ring
Large-diameter toothed ring with a finished inner bore.
Turning · Keyway
Stepped shafts
Matched set of stepped shafts with machined journals and keyways.
Plano milling · Profiling
Plate with eccentric bore
Heavy plate with an offset profiled cut-out.
Milling · Drilling
Drilled cover plate
Rectangular cover with a perimeter bolt pattern and machined faces.
Batch milling
Slotted plates
Batch of plates with repeated angled slot patterns.

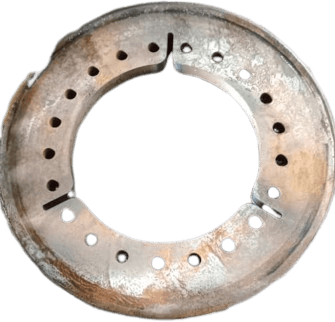

Turning · Radial drilling
Drilled flange ring
Flange ring with a drilled bolt circle and locating notches.
Photographs are of actual components produced by Vedhaah Enterprises. Materials, dimensions and end-use are available on request for reference purposes.
Have a similar part?
Send the drawing or a photo of the sample and we'll come back with how we'd machine it.
